Please note: one package contains 2 adapters and 2 mo.blaze discs black

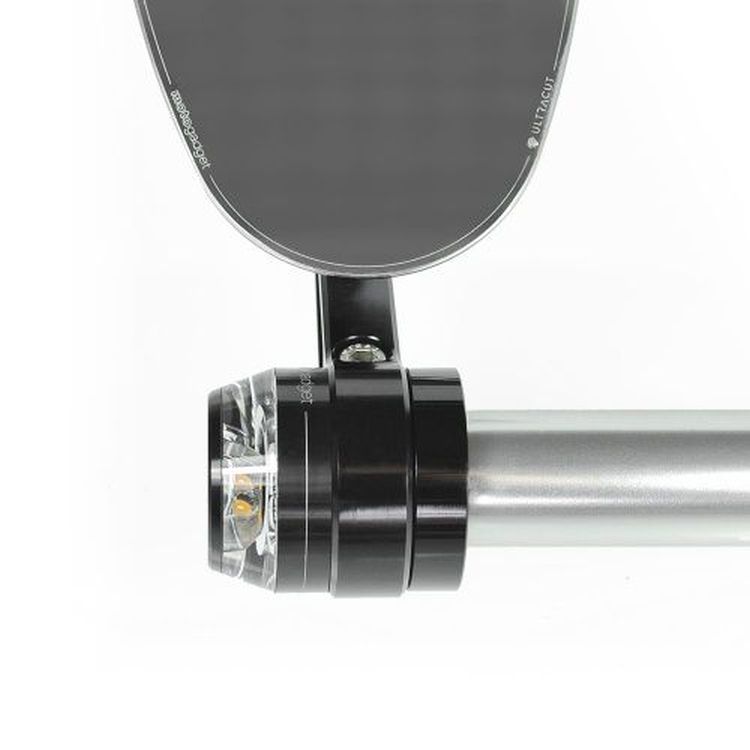

The bar adapt. BMW M10 disc allows the mounting of all mo.view bar end mirrors on BMW handlebars with M10 thread, in combination with the mo.blaze disc bar end indicator, without moving the gripsand controls on the handlebars. The two special black mo.blaze discs are also included in the delivery.
The adapter creates a clamping surface for the handlebar end mirror outside the steering tube. No matter if for the mo.view blade, mo.view spy, mo.view flight, mo.view cafe, mo.view road, mo.view pace, mo.view cruise or mo.view street. At the same time it clamps the mo.blaze disc at the end of the handlebars.
It is CNC-machined from billet aluminium and black anodized.
The assembly in the handlebar end is done by screwing the M10 thread into the handlebar. Then the handlebar end mirror is clamped on the adapter. This also clamps the handlebar end indicator in the adapter.

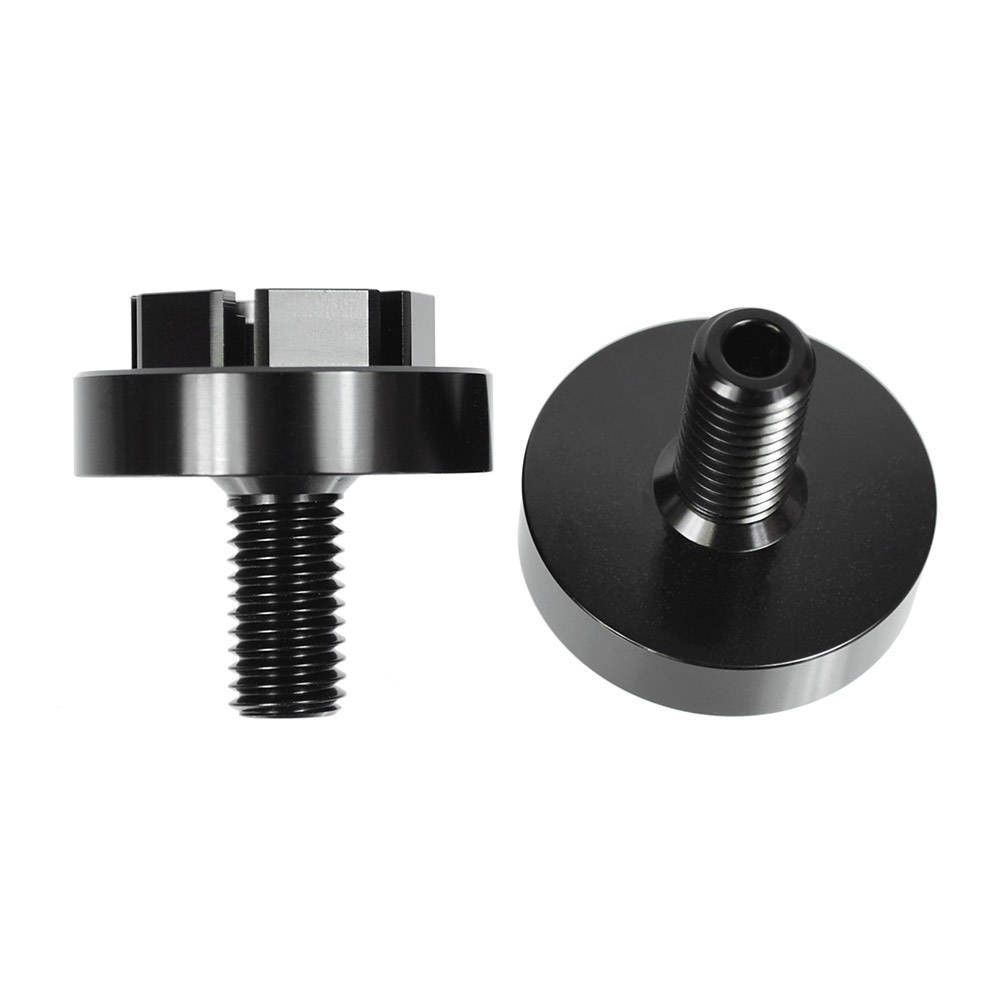

The bar adapt. BMW M10 disc comes with two threaded pieces for the left and right side of the handlebars. Since the mo.blaze disc can only be used as a modified version, two bar end indicators are included.
The mounting is done directly in the thread M10 of the BMW handlebars.
Dimensions
Fits all BMW handlebars with M10 thread
Total length: approx. 45 mm
Width of clamping surface for mirror: 8 mm, fits all mo.view handlebar end mirrors
Diameter of clamping surface: 1 inch, fits all mo.view handlebar end mirrors
Weight (1 piece): approx. 25 g
Scope of delivery
2 x bar adapter BMW M10 disc, 2 x mo.blaze disc black, manual
