Please note: one package contains 2 adapters for
Yamaha MT09 built 2021 - 2022
Fazer 600 built 1998-2003
Fazer 400 built 1997

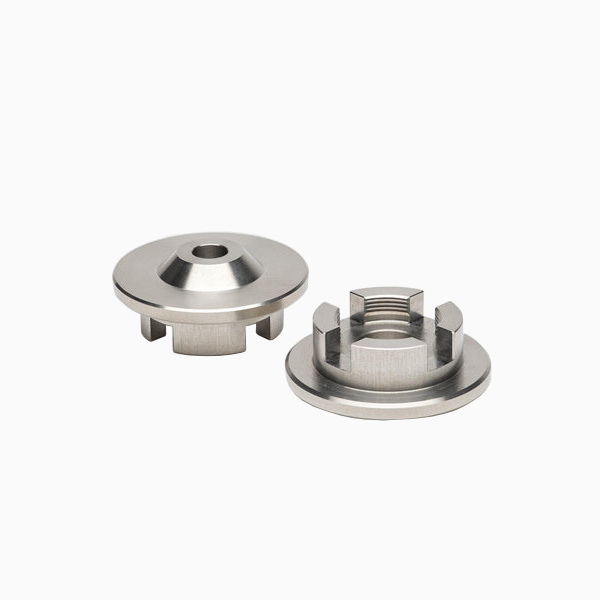

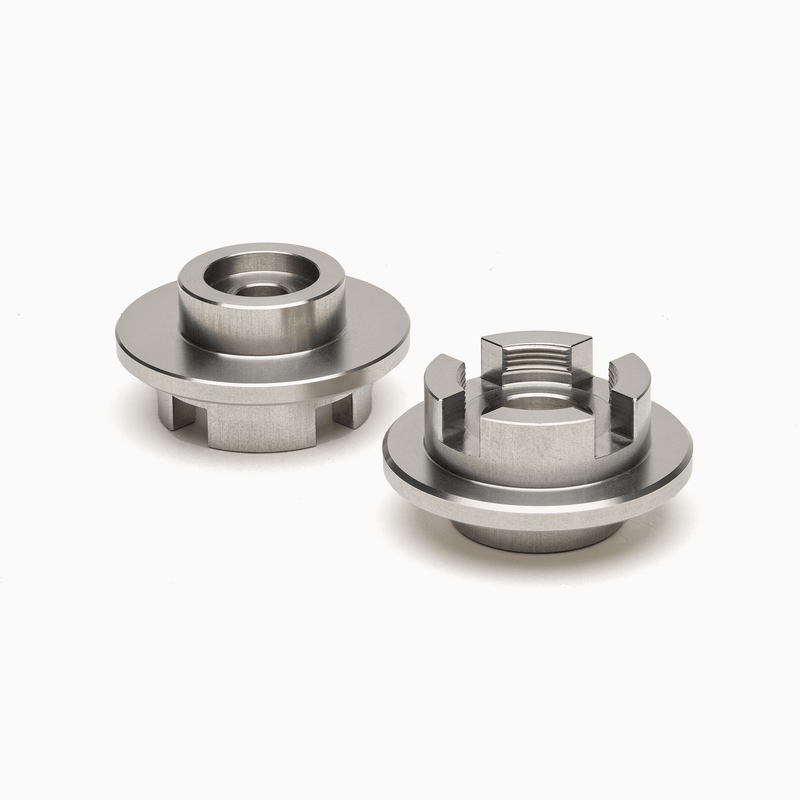

The bar adapter Yamaha cap allows the mounting of all mo.view bar end mirrors on Yamaha handlebars without moving the grips and controls on the handlebars.
The adapter creates a clamping surface for the handlebar end mirror outside the steering tube. No matter if for the mo.view blade, mo.view spy, mo.view flight, mo.view cafe, mo.view road, mo.view pace, mo.view cruise or mo.view street.
It is made of stainless steel.
The assembly in the handlebar end is done by screwing into the handlebar. Then the handlebar end mirror is clamped on the adapter.
The bar adapter cap comes with two screws for the left and right side of the handlebars.
The mounting is done directly in the thread of the Yamaha handlebars.
Dimensions
Fits all Yamaha handlebars MT09 built 2021 - 2022, Fazer 600 built 1998 - 2003, Fazer 400 built 1997
Total length: approx. 45 mm
Width of clamping surface for mirror: 8 mm, fits all mo.view handlebar end mirrors
Diameter of clamping surface: 1 inch, fits all mo.view handlebar end mirrors
Weight (1 piece): approx. 35 g
Scope of delivery
2 x bar adapter Yamaha cap, 2 screws, manual
